Features

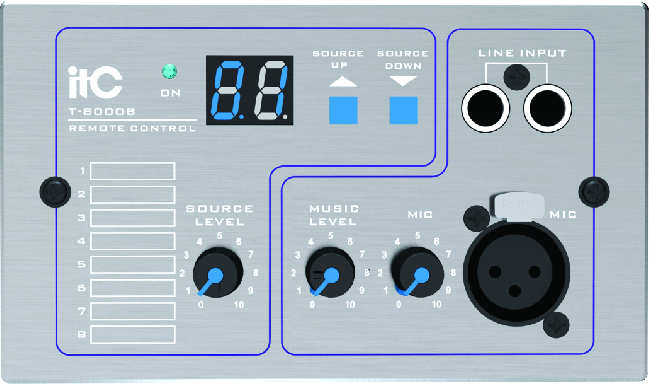

- The T-8000B remote control with audio input module is connected with T-8000 through universal industrial standard CAT 5

for each eight zone's volume adjustment or remote line and microphone input at a remote and different location from the control center.

- Two different options: T-8000B of aluminum material in grey color and T-8000BW of ABS material in white color.

- Each controller provides eight RJ45 ports for the remote control with audio input module.

- The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication,audio transmission and DC 24V power supply together.

- This module family also has simpler functional module of T-8000C and T-8000D.

- Remote line by dual RCA and mic by XLR inputs with gain controls.

- Zone LED indicator with up/down buttons.- Volume control is provided for overall output level control.

- DC 24V power supply from controller, low power consumption 5W.

- Extra DC 24V power supply is needed when communication distance is more than 50 meters.

- Analog to digital conversion working principle to adjust controller's volume.- Metal mounting box is supplied.
